Some potential limitations to our rationale should also be considered. Alternative fluoride sources, for example from tea or fluoridated dentifrices, may also be important determinants of total fluoride at high intakes (particularly dentifrices in children (Zohouri et al. 2013)), but their relative contribution to total fluoride intake is generally lower when water fluoride concentrations reach levels typically targeted by fluoridation schemes (‘Opinion on critical review of any new evidence on the hazard profile, health effects, and human exposure to fluoride and the fluoridating agents of drinking water’ 2011; Zohouri et al. 2006a). Additionally, globalised production and importation of foodstuffs may modify fluoride intake independent of local water fluoride concentration (a phenomenon referred to as the ‘halo effect’) (Griffin et al. 2001). This would presumably be of most relevance to population groups who consume more manufacturer-added than consumer-added water such as from soft drinks in children. For example, estimates of water intake in 11–12 years olds in North East England estimated carbonated drinks provided 17% of water intake (Zohouri et al. 2004). Even so, consumer-added water still accounted for a much higher percentage of total water intake (35%) than manufacturer-added water (24%), meaning water fluoridation is still highly likely to be a major determinant of total fluoride intake (and is supported by recent biomarker studies in children and adults referenced above). However, we recognise that the validity of PWS fluoride concentration as a proxy for total intake may vary by differing dietary habits and age groups.

Data sources and management

Data cleaning, management and analysis were executed in Microsoft Excel 2010 (Microsoft, USA) and STATA version 14 (StataCorp, USA). Geo-referencing was performed using ArcGIS ArcMap version 10.2 (Esri, USA). Exposure indicators were estimated by combining fluoride concentration obtained from routine fluoride monitoring data from 1995 to 2015, provided by the DWI and population data obtained from the Census and related mid-year estimates computed by the Office for National Statistics (ONS). The DWI supplied copies of water company WSZ boundary files in digital format for 2004–2015, of which we were able to prepare 2005–2015 for analyses. We used Geographic Information Systems (GIS) point-in-polygon (PIP) methods to assign statistical areas to WSZ boundaries using the population weighted centroid (Chapter 7—Using GIS for Environmental Exposure Assessment: Experiences from the Small Area Health Statistics Unit 2004). The smallest geographical unit of analysis was the 2011 Lower layer Super Output Area (LSOA); analyses at larger geographical areas were performed by using LSOA level fluoride, health and population data as ‘building blocks’, aggregated to form their larger ‘parent’ 2011 Middle layer Super Output Area (MSOA) and 2011 Lower Tier Local Authority (LTLA) areas (with which their borders match). See Supplementary Table 1 for population and count information on these geographic units. The population-weighted centroid of each LSOA (‘point’), which assigns a single geographic point to each LSOA based on the largest aggregation of its population, was overlaid onto WSZs (‘polygons’), thereby allocating a LSOA (and their populations) to a WSZ. As WSZs may be aggregated or dis-aggregated to form new WSZs, the number and geographic boundaries of WSZs are not fixed over time, though this occurs at (at least) annual intervals. WSZs will retain a unique identifier (consisting of the concatenated water company name and water company WSZ reference) whilst under the ownership of a single company, which can be used to track monitoring data over the time period of the WSZ’s ownership by that particular water company. To overcome the issue of WSZs changing shape and size over time, PIP analysis was repeated for each year of available (mapped) WSZ data (2005–2015). The linked LSOA-WSZ pairs were then linked with the DWI fluoride concentration and fluoridation scheme flagging dataset, using concatenated site reference and water-company coding by year to identify common WSZ years. Arithmetic mean period fluoride concentrations for the exposure period of interest were then aggregated from LSOA to higher geographic levels, weighted by the exposed population. We deliberately selected the arithmetic mean rather than other measures of central tendency less effected by extreme values as this would most accurately reflect population exposure in the whole period of interest, which would include ‘outlier’ periods.

Area-level fluoride concentration in water supply, regardless of source, was then categorised into the following: 0.0–<?0.1 mg/L, 0.1–<?0.2 mg/L, 0.2–<?0.4 mg/L, 0.4–<?0.7 mg/L and ??0.7 mg/L. Such an approach was chosen to examine possible biologic gradient in the form of presence of a dose–response, while not assuming it would follow a specific model form (Rothman et al. 2008). Rather, we intended to break the range of the study exposure into categories that could be used to look for trends in the category-specific coefficients or relative risks, while avoiding a mechanical algorithm such as the percentile method, which could lack power to detect exposure effects stronger at extreme ends of the exposure scale (Greenland 1995). These categories were selected because, from international evidence, the association between fluoride concentration and decreasing caries prevalence was thought to increase linearly with increasing fluoride concentration, with reductions in dental caries prevalence tailing off above 0.7 mg/L (U.S. Department of Health Human Services Federal Panel on Community Water Fluoridation 2015). Further categorising the fluoride concentration of the population receiving water supplies with fluoride <?0.7 mg/L would give the ability to detect a dose–response, plateau, and threshold effect at higher fluoride levels. Given the relatively low water fluoride concentrations in England, the population receiving supplies at concentrations >?0.4 mg/L was thought unlikely to be large enough for division into more than two further categories and still allow meaningful examination of associations with less common health outcomes.

Missing data, outliers and unexpected values (e.g. high fluoride concentrations in zones not flagged as fluoridated, and vice versa) were investigated. Since 2006, the DWI has retained annual records that identify, via a flag, those WSZs that have fluoridation schemes. As no new CWF schemes have been initiated since 1995, flagged WSZs were considered to have been fluoridated from at least 1995 continuously to 2015, and we checked whether all zones ever fluoridated had consistent CWF flagging. Where this was not the case, we asked the DWI to check their supporting databases as to whether the zone was truly fluoridated or not and whether inconsistent flagging may have been the result of disruption in operation of fluoride plant. If there was known disruption of fluoridation, then the zone was re-flagged as being not fluoridated for the years during which fluoridation was disrupted.

Exposure indicator descriptive analysis

The number of water supply zones, number of samples and average number of years of monitoring data per WSZ were described from 1995 to 2015 stratified by time period (1995–2004 or 2005–2015), reflecting the variation in availability of WSZ mapping data and approach to fluoridation and its monitoring over different time periods. We then described the annual mean fluoride concentrations in each zone for these two time periods, stratified by presence of a fluoridation scheme, using histograms and box-plots. Stability of fluoride concentrations within unique zones was further described by creating scatter plots and calculating Spearman rank coefficients (stratified by presence or absence of a fluoridation scheme) for the WSZ-level period mean fluoride concentrations from 1995 to 2004 compared to 2005–2015. Spearman rank coefficients were calculated due to the skewed distribution of the data in fluoridated areas. Fluoridation schemes known to have significant disruption to operation were excluded from the creation of scatter plots and correlation analysis. MSOA-level public water supply grand mean (of the annual means) fluoride concentrations for 2005–2015 and location of fluoridation schemes were then described spatially by mapping the 2005–2015 grand mean fluoride concentrations and the distribution of fluoridation schemes onto 2011 MSOA boundaries. In order to map grand mean fluoride concentrations onto MSOA boundaries, we first calculated the grand mean fluoride concentrations for each LSOA and then aggregated to MSOA level by weighting the means of each constituent LSOA by its 2005–2015 population, using ONS mid-year population estimates. We then tabulated the MSOA-level count of population supplied (taking the period average) for categorised levels of fluoride concentration in milligrams per litre.

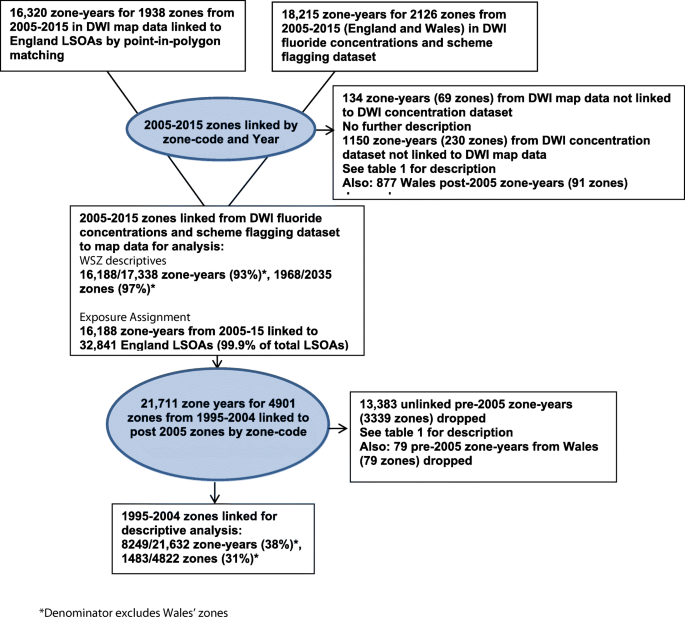

Figure 1 summarises how zones were selected for analysis. A total of 134 zone years from 69 water supply zones were linked to LSOA geography on PIP linkage but then could not be linked to zones in the main DWI fluoride concentration dataset.^{Footnote 1} No further characteristic information was available for these zones.

A further 1150 zone years from 230 zones over 2005–2015 were in the DWI fluoride concentration dataset but not linked to zone codes in the WSZ boundary files for PIP linkage. The characteristics of these zones are shown in Table 1 below.

The characteristics of zone years/zones that were linked between the two datasets for the time period are summarised in Table 2.

Median fluoride was slightly lower in the un-linked 2005–2015 zones, but higher if in the 5.6% in a fluoridation scheme. Fewer annual samples were taken in these un-linked zones; however, the 10-year typical duration of a zone is similar to the linked zones. Thirty-three out of 192 zones flagged as ever fluoridated from 2006 to 2015 in the DWI dataset had inconsistent flagging. After discussion with the DWI, flagging inconsistencies were resolved for all zones, leaving 170 zones confirmed as ever being fluoridated, of which 7 were noted to have experienced significant disruption to fluoridation operations (see Supplementary Tables 2 and 3 for further details regarding zones with inconsistent flagging).

On linking zones from post-2005 to their pre-2005 counterparts, 13,383 zone years (62% of the total 21,632 pre-2005 zone years) from 3339 zones were not linked. The characteristics of these zones are shown in Table 1 above and can be compared to zone years/zones that were linked between the two periods summarised in Table 2, also above. Fluoridation status could not be assigned to zones that were not linked to any zones from 2006 onwards, when fluoride flagging was initiated. Median fluoride was similar, but slightly lower in the un-linked 1995–2004 zones (0.1 mg/L compared to 0.12 mg/L). There was a similar sampling frequency of just a single annual sample in linked and un-linked zones, and the typical zone duration of 8 years was shorter than linked zones, as expected.

Median fluoride across England of 0.12 mg/L was similar for the two time periods. However, median fluoride was slightly higher for fluoridated WSZs in the latter time period (0.84 mg/L compared to 0.78 mg/L). Most zones linked from the earlier time period contributed data for the entire 1995–2004 monitoring period but were only sampled once a year. Virtually, all of the zones from the latter 2005–2015 time period provided data for 11 years, i.e. they existed since at least 2004.

Box plots of annual mean fluoride concentrations from 1995 to 2015 in zones without a fluoridation scheme (see Fig. 2 below) described a relatively stable fluoride concentration across the monitoring period. Apart from 1995, at least 75% of un-fluoridated zones had fluoride concentrations lower than 0.2 mg/L in any year, but there were zones with fluoride concentrations across the range of 0.2 mg/L to maximum concentrations of 1.4–1.5 mg/L. These elevated concentrations likely represented areas with fluoride from geological sources.

Fluoride concentrations in areas with a scheme (Fig. 3) showed the median of the annual mean fluoride in these areas could fluctuate from as high as 0.9 mg/L to lower than 0.7 mg/L. Seventy-five percent of zones were always at concentrations of <?1 mg/L in each year, and some zones had concentrations of <?0.5 mg/L (fewer than 25% of zones except for 1997, 1998, 2010 and 2011), and as low as <?0.1 mg/L, despite being identified as fluoridated for that year.

The bimodal distribution of annual fluoride concentrations by presence of a scheme is appreciated in Fig. 4. However, there was an overlap in fluoride concentrations in zones with and without a scheme across the range of fluoride concentrations, and the highest concentrations (up to 1.48 mg/L) were noted in zones without a scheme, i.e. where fluoride was present from geological sources.

Comparing aggregated period mean fluoride concentrations (see Figs. 5 and 6), there was a strong correlation (Spearman rank coefficient?=?0.93) between period mean fluoride concentrations for the two time periods in un-fluoridated zones.

Summary period fluoride statistics in un-fluoridated zones were very similar across the time periods. The correlation of aggregated period mean fluoride concentrations for fluoridated zones, excluding those where disrupted fluoridation scheme operation was known, was weak (Spearman rank coefficient?=?0.31). The latter period fluoride was slightly higher (median 0.84 mg/L compared to 0.78 mg/L) with a narrower interquartile range (0.23 mg/L in 2005–2015 compared to 0.33 mg/L) (Table 3).

The size of populations assumed exposed to different fluoride concentration categories, and to fluoridation schemes, by statistical/administrative geography in England for the 2005–2015 period is summarised below (see Table 4 and Figs. 7 and 8). Fluoride concentrations were not available for the Isles of Scilly, and none were recorded during 2005–2015 for two further LSOAs (both in Richmondshire).

The particular fluoride concentration, and percentage of areas fluoridated, varies by the different areal units due to aggregation. Most of the population (70% or more) lived in areas where the fluoride concentration in public water supplies was <?0.2 mg/L and 9–10% where it was greater than 0.7 mg/L.

Our analysis of routine fluoride monitoring data detailed how the population of England receives public water supplies with a range of fluoride concentrations, even in areas without fluoridation schemes. Fluoride concentrations in CWF zones were typically lower than target concentrations. We also observed large within-zone annual variation in fluoride concentration in CWF zones and frequently elevated fluoride concentrations in zones without a scheme. Use of water supply boundaries to allocate water fluoridation status has been noted as an efficient method for exposure estimation for public health monitoring studies (Skinner 2012; McLaren 2016), but our findings emphasise the need to use an average of the measured fluoride concentrations. Otherwise, misclassification of exposure may result due to geological sources of fluoride in PWS or variation in CWF performance.

The observed weak correlation between period mean fluoride in fluoridated zones and much stronger correlation in un-fluoridated zones was not unexpected, given fluoride concentration must be maintained within the target range by continuous adjustment by fluoride dosing and/or blending of water supplies. Active fluoridation processes are subject to a range of potential operational challenges such as shortages of fluoride substrate, equipment failure or planned maintenance (though we excluded zones with known major disruption to operation). Limitations in ability to link a large proportion of WSZs across the two time periods mean these results should be treated cautiously, but this poor correlation means there is greater uncertainty in being able to confidently assign a long-term exposure within a narrow concentration range. This would be of most relevance for health outcomes with a likely long lag period from exposure to initiation of pathology, such as cancer and possibly bone fractures, in populations living in areas supplied by fluoridation schemes. Clustering of data points in the bottom right quadrant of the scatterplot (Fig. 6) and the increase in period median fluoride concentration suggest that pre-2005 exposures may be (on average) over-estimated in fluoridated zones if 2005–2015 averages are used as a proxy. In the absence of geo-referenceable data to estimate exposures prior to 2005, using wider fluoride concentration categories may prevent some misclassification, but at the expense of inefficient use of the data and defining a less granular dose response.

Fluoride intake from water depends on both the concentration and the volume of water consumed. While it would be informative to know frequency and quantity of consumption, such data, for example from surveys of drinking water consumption, were only available at a regional level in England; too large a population level to usefully add to the exposure assessment in our study. Exposure duration data would also have been useful but would have required individual residential histories, which were not available and therefore could not be included. It would be interesting to investigate the association between health effects and a measure of the total daily fluoride intake from all sources or the total dose of fluoride absorbed by each person, but again, such total fluoride intake data were not available using routine data. This would also overcome concerns about ‘halo effects’ from dietary manufacturer-added water modifying total fluoride intake. However, as previously discussed, urinary fluoride (a biomarker proxy of dose of fluoride absorbed) strongly correlates with water fluoride concentrations, including at the range of PWS fluoride concentrations observed in our dataset and in a broadly comparable Western population (Till et al. 2018). Further validation of spot urinary fluoride concentration against 24-h urine fluoride as a biomarker of exposure would be helpful to add to the evidence base for their use in adults. However, on the balance of evidence, we consider PWS fluoride concentrations a reasonable indicator of absorbed fluoride dose, particularly once PWS fluoride concentrations increase beyond around 0.3 mg–0.4 mg/L.

Our study has some important limitations. As we have only been able to compare WSZs with stable identifiers over time, we are in effect selecting a sample of WSZs with durable identifiers across the time periods, which may have resulted in differential selection of zones with more/less stable fluoride concentrations. This would only impact on our results if WSZs with stable fluoride concentrations were differentially likely to change ownership (resulting in change in their unique identifier), which would seem unlikely. This is of most concern for unlinked WSZs from 1995 to 2004 zones, as 62% were not linked to 2005–2015 zones for comparison (whereas only 3% of 2005–2015 WSZs with data could not be used in this analysis as they could not be linked to map data). However, the median fluoride concentrations and fluoride sampling frequency were similar for both linked and un-linked 1995–2004 WSZs, giving more confidence in our findings. We analysed routine fluoride concentration monitoring data collated for water quality verification; the sampling method was not designed for the purposes of health monitoring, which brings limitations. Though sample points were randomly chosen or selected so as to be representative of the wider WSZ, precision (due to sampling frequency) and accuracy (due to the location of sampling and/or measurement methods used) are likely to have been less optimal than could be achieved from a survey designed specifically for research purposes. However, the long time periods of data collection and relatively uniform sampling procedures used will have negated some of these concerns. We were also reassured by the frequency and consistency of concentrations <?0.15 mg/L (the mandated lower detection limit) in zones without schemes or geological fluoride sources, matching expectations from previous work which described PWS fluoride concentrations in England and Scotland (Blakey et al. 2014) that operational testing outperforms this minimum standard. Additionally, communities may have had their PWS fluoride concentrations misclassified if WSZ digital boundaries poorly circumscribed the source of water supplied. PWS fluoride concentrations derived using our methods did correlate with less prevalent and less severe caries in an approximately dose-dependent manner on health monitoring (Public Health England 2018), meaning there is some face validity, but biomarker studies to validate the routine monitoring data could be considered. The number of annual monitoring samples increased in 2005–2015 compared to 1995–2004 (to a median of 8 from a median of 1), indicating a change in the frequency of fluoride concentration monitoring that coincided with the introduction of new regulations. This or other changes which we have not measured may have introduced misclassification if this resulted in a change in precision of WSZ fluoride concentration estimation across the two time periods. When comparing fluoride concentrations in WSZs with and without a scheme between 1995 and 2004 and 2005–2015, we only excluded WSZs where disruption to fluoridation was detected by inconsistent flagging of fluoridated WSZs reported to DWI by water companies. This is likely to not take into account shorter term disruption, potentially weakening correlations across the time periods for fluoridated WSZs if disruption varied by time period.

In conclusion, we were able to use routine PWS fluoride concentration monitoring data to estimate population PWS fluoride exposure in England. These estimates provide an efficient method for estimating exposure for public health monitoring and are more accurate than using fluoridation status alone. Additionally, the use of exposure categories allows the detection of an exposure-outcome dose–response which can aid epidemiological inference of causation. Including low PWS fluoride concentrations in these categories allows monitoring of health effects potentially present only at lower exposure concentrations. However, such associations should be interpreted cautiously, as PWS fluoride concentrations are more likely to provide a reasonable proxy for total fluoride exposure at higher PWS fluoride concentrations (e.g. above 0.3–0.4 mg/L), when fluoride intake from water will make up a greater proportion of the total intake. The 1995–2004 and 2005–2015 period mean WSZ fluoride concentrations were similar, but concentrations were more stable in WSZs without CWF. This means fluoride exposure prior to availability of geo-referenceable PWS fluoride monitoring data in 2005 could be estimated using data from the later period, but there is a greater risk of misclassification of 1995–2004 fluoride concentrations in CWF zones.

1. Each water supply zone may contribute varying durations of concentration data; therefore, one ‘zone year’ is equivalent to 1 year of fluoride concentration data for one water supply zone.

We would like to acknowledge the Drinking Water Inspectorate for provision of the routine monitoring data and water supply zone boundaries. We would like to acknowledge Diane Edwards for the GIS analysis used for this report and the other members of the PHE Water Fluoridation and Health Monitoring working group. This work contains public sector information licensed under the Open Government Licence v3.0.
